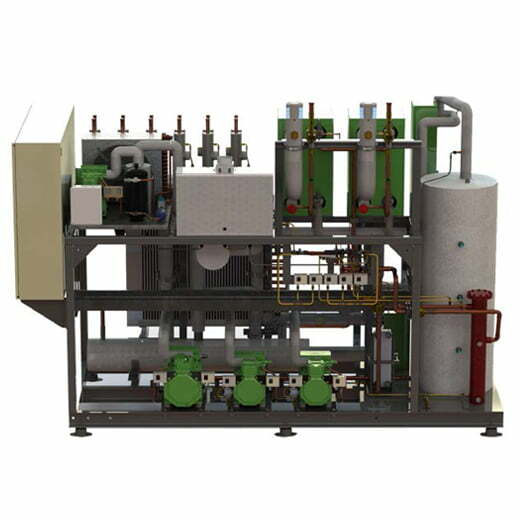

    BITZER Gen-8 CO2 Sub-Critical CO2 Rack

    Fully Welded painted steel base. Each compressor c/w adjustable HP/LP safety switch and electronic oil level regulator. Coalescent oil separator c/w ball valve on outlet. Single suction and liquid piping connection (header available as option).

    Air Cooled De-Superheater and Cascade PHE* fitted. Demountable liquid and suction driers. 130Lt liquid receiver. Pressure relief Valve station mounted on rack. Rack is delivered with anti-vibration mounts, BITZER genuine oil and filters for initial commissioning.

    *PHE optimised for R134a operation, alternate refrigerants can be investigated by BITZER as required.

    Brand

    Bitzer

    bitzer logo 150px

    Specifications

    Part Number Unit Model
    U23-4001 CO2-CASC-LT-3-1-7
    U23-4002 CO2-CASC-LT-3-1-10
    U23-4003 CO2-CASC-LT-3-2-13
    U23-4004 CO2-CASC-LT-3-2-18
    U23-4005 CO2-CASC-LT-3-2-26
    U23-4006 CO2-CASC-LT-3-2-34
    U23-4007 CO2-CASC-LT-3-2-40
    U23-4008 CO2-CASC-LT-3-2-47
    U23-4009 CO2-CASC-LT-3-2-57
    U23-4010 CO2-CASC-LT-3-2-68
    U23-4011 CO2-CASC-LT-3-2-73
    U23-4012 CO2-CASC-LT-3-2-87
