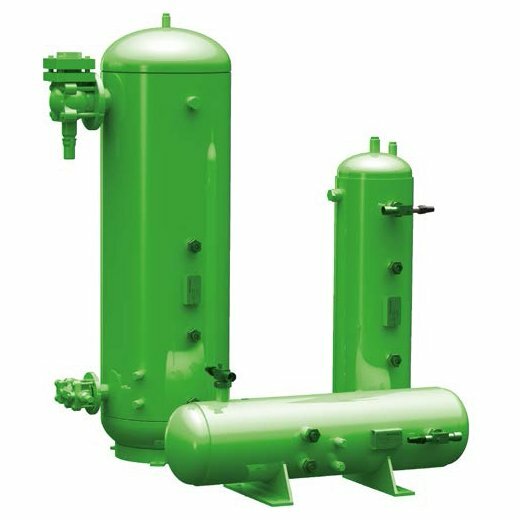

BITZER Horizontal Liquid Receivers
Complete with Rotalock shut-off valve.
Brand
Bitzer
Specifications
| Part Number | Unit Model | Inlet | Outlet | Pump Down Capacity R134A |
Pump Down Capacity R404A |
| B30-003-FT | RH 25 | Ø3/4″ | Ø5/8″ | 12.8 Kg | 11.6 Kg |
| B30-008-FT | RH 73 | Ø3/4″ | Ø5/8″ | 27.0 Kg | 23.5 Kg |
| B30-027-FT | RH 80 | Ø1 1/8″ | Ø1 1/8″ | 39.5 Kg | 34.0 Kg |
| B30-010-FT | RH 90 | Ø1 1/8″ | Ø1 1/8″ | 45.0 Kg | 39.0 Kg |
Notes:
Special Liquid receivers are available on request, made to your specification and our quotation
Liquid Inlet and Outlet service valves fitted as standard
Vessel Pump Down capacities calculated for 80% Liquid Refrigerant Level at +25°C
Please nominate mounting arrangement when ordering
BITZER Liquid Receivers RV4 & RV7 Manufactured to Australian Standard AS 2971
BITZER Liquid Receivers Certified to Australian Standards
