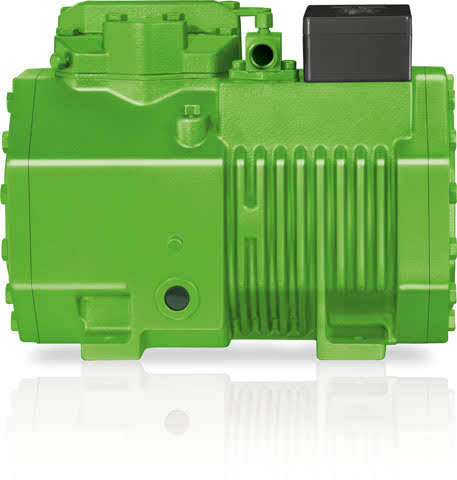

The BITZER ECOLINE series is the most universal compressor in the range of semi-hermetic reciprocating compressors. It combines high efficiency, a wide range of applications, flexibility in refrigerant selection, smooth running, solid design and high reliability.
Refrigerants
- HFC/HCFC
- Low GWP
- HFO blend
Certifications
- ASERCOM
- CE
- EAC
- UL
- DNVGL
Applications
- Low temperature
- Medium temperature
- Air conditioning
Industry sectors
- Commercial refrigeration
- Heat pump
- Marine
- Process cooling
Brand
Bitzer
Capacities
R134A
Performance Table
| Ambient temperature | ► to | 10°C | 5°C | 0°C | -5°C | -10°C | -15°C | -20°C | -25°C |
| 30°C | Cooling capacity (Watts) | 10784 | 8980 | 7385 | 5994 | 4790 | 3758 | 2877 | 2137 |
| Power input (KW) | 2.06 | 1.94 | 1.82 | 1.68 | 1.53 | 1.38 | 1.23 | 1.08 | |
| Current (Amps) | 4.55 | 4.42 | 4.29 | 4.15 | 4.02 | 3.89 | 3.77 | 3.66 | |
| Mass flow (Kg/h) | 237 | 193.4 | 156.5 | 125.3 | 99 | 76.9 | 58.5 | 43.2 | |
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Condensing SDT (°C) | 38.2 | 37 | 35.9 | 34.9 | 34 | 33.3 | 32.6 | 32.1 | |
| subcooling (K) | 3 | 3 | 2.86 | 2.74 | 2.63 | 2.54 | 2.31 | 2.03 | |
| 40°C | Cooling capacity (Watts) | 9491 | 7887 | 6470 | 5234 | 4163 | 3244 | 2458 | 1798 |
| Power input (KW) | 2.41 | 2.24 | 2.06 | 1.87 | 1.68 | 1.49 | 1.3 | 1.11 | |
| Current (Amps) | 4.96 | 4.76 | 4.55 | 4.34 | 4.15 | 3.98 | 3.82 | 3.69 | |
| Mass flow (Kg/h) | 228 | 185.8 | 149.8 | 119.5 | 93.9 | 72.4 | 54.5 | 39.6 | |
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Condensing SDT (°C) | 47.6 | 46.5 | 45.4 | 44.5 | 43.7 | 43 | 42.4 | 41.9 | |
| subcooling (K) | 3 | 2.93 | 2.81 | 2.69 | 2.59 | 2.5 | 2.2 | 1.86 | |
| 50°C | Cooling capacity (Watts) | 8225 | 6817 | 5576 | 4492 | 3552 | 2742 | 2051 | 1470 |
| Power input (KW) | 2.71 | 2.48 | 2.25 | 2.01 | 1.78 | 1.55 | 1.33 | 1.12 | |
| Current (Amps) | 5.34 | 5.05 | 4.76 | 4.5 | 4.25 | 4.03 | 3.84 | 3.69 | |
| Mass flow (Kg/h) | 219 | 177.8 | 142.8 | 113.2 | 88.3 | 67.5 | 50.1 | 35.8 | |
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Condensing SDT (°C) | 57 | 55.9 | 55 | 54.2 | 53.4 | 52.7 | 52.2 | 51.7 | |
| subcooling (K) | 3 | 2.87 | 2.75 | 2.64 | 2.55 | 2.37 | 2.08 | 1.66 |
Result
| Power input including fan power absorbtion | |
| Capacity control | 100% |
| Required Capacity | 4.69 kW |
| COP/EER | 2.09 |
| Cooling capacity | 4.69 kW |
| Evaporator capacity | 4.69 kW |
| Power input | 2.24 kW |
| Current (400V) | 4.04 A |
| Mass flow | 98.2 kg/h |
| Condensing SDT | 35.5 °C |
| Liquid subcooling | 2.57 K |
| Operating mode | Standard |

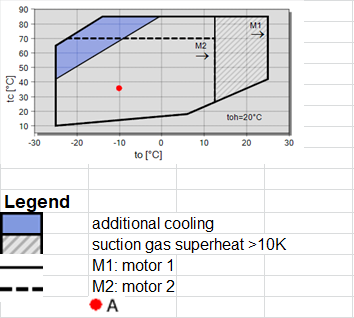

Application Limits
R404a
Performance Table
| Ambient temperature | ► to | 10°C | 5°C | 0°C | -5°C | -10°C | -15°C | -20°C | -25°C |
| 30°C | Cooling capacity (Watts) | — | 13122 | 11240 | 9532 | 7994 | 6610 | 5383 | 4305 |
| Power input (KW) | 3.41 | 3.19 | 2.97 | 2.74 | 2.5 | 2.26 | 2.02 | ||
| Current (Amps) | 6.26 | 5.97 | 5.67 | 5.37 | 5.07 | 4.78 | 4.51 | ||
| Mass flow (Kg/h) | 371 | 308 | 254 | 208 | 168.8 | 135.2 | 106.6 | ||
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Condensing SDT (°C) | 40.8 | 39.4 | 38.2 | 37.1 | 36 | 35.1 | 34.2 | ||
| subcooling (K) | 3 | 3 | 3 | 3 | 2.88 | 2.76 | 2.65 | ||
| 40°C | Cooling capacity (Watts) | — | 11006 | 9432 | 7994 | 6686 | 5509 | 4463 | 3541 |
| Power input (KW) | 3.83 | 3.56 | 3.28 | 2.99 | 2.7 | 2.41 | 2.12 | ||
| Current (Amps) | 6.86 | 6.47 | 6.09 | 5.7 | 5.32 | 4.96 | 4.61 | ||
| Mass flow (Kg/h) | 354 | 292 | 240 | 196.1 | 158.2 | 125.9 | 98.3 | ||
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Condensing SDT (°C) | 49.7 | 48.5 | 47.4 | 46.4 | 45.4 | 44.6 | 43.8 | ||
| subcooling (K) | 3 | 3 | 3 | 2.92 | 2.81 | 2.7 | 2.6 | ||
| 50°C | Cooling capacity (Watts) | — | 8815 | 7557 | 6390 | 5322 | 4360 | 3501 | 2741 |
| Power input (KW) | 4.17 | 3.84 | 3.51 | 3.16 | 2.82 | 2.48 | 2.14 | ||
| Current (Amps) | 7.34 | 6.87 | 6.4 | 5.93 | 5.48 | 5.04 | 4.64 | ||
| Mass flow (Kg/h) | 332 | 273 | 223 | 180.8 | 144.6 | 113.7 | 87.4 | ||
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Condensing SDT (°C) | 58.5 | 57.5 | 56.5 | 55.6 | 54.8 | 54 | 53.3 | ||
| subcooling (K) | 3 | 3 | 2.94 | 2.83 | 2.72 | 2.63 | 2.54 |
Result
| Power input including fan power absorbtion | |
| Capacity steps | 100% |
| Cooling capacity | 7.83 kW |
| Evaporator capacity | 7.83 kW |
| Power input | 3.46 kW |
| Current (400V) | 5.42 A |
| Voltage range | 380-420V |
| Mass flow | 207 kg/h |
| Condensing SDT | 38.2 °C |
| Liquid subcooling | 2.90 K |
| Operating mode | Standard |

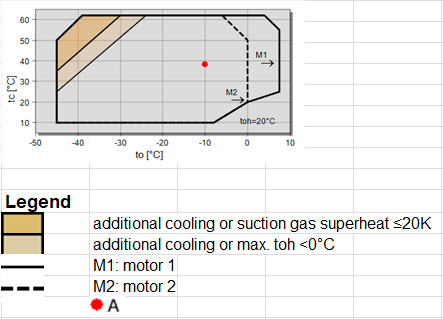

Application Limits
R507A
Performance Table
| Ambient temperature | ► to | 10°C | 5°C | 0°C | -5°C | -10°C | -15°C | -20°C | -25°C |
| 30°C | Cooling capacity (Watts) | — | 13380 | 11488 | 9767 | 8212 | 6811 | 5565 | 4468 |
| Power input (KW) | 3.42 | 3.2 | 2.98 | 2.75 | 2.51 | 2.27 | 2.02 | ||
| Current (Amps) | 6.27 | 5.98 | 5.68 | 5.38 | 5.08 | 4.79 | 4.51 | ||
| Mass flow (Kg/h) | 393 | 326 | 270 | 221 | 179.7 | 144.4 | 114.2 | ||
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Condensing SDT (°C) | 40.9 | 39.6 | 38.3 | 37.2 | 36.1 | 35.2 | 34.3 | ||
| subcooling (K) | 3 | 3 | 3 | 3 | 2.89 | 2.77 | 2.67 | ||
| 40°C | Cooling capacity (Watts) | — | 11186 | 9612 | 8170 | 6853 | 5665 | 4606 | 3671 |
| Power input (KW) | 3.84 | 3.57 | 3.28 | 3 | 2.7 | 2.41 | 2.12 | ||
| Current (Amps) | 6.86 | 6.48 | 6.09 | 5.71 | 5.33 | 4.96 | 4.61 | ||
| Mass flow (Kg/h) | 374 | 310 | 255 | 209 | 168.6 | 134.5 | 105.5 | ||
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Condensing SDT (°C) | 49.8 | 48.6 | 47.5 | 46.5 | 45.5 | 44.7 | 43.9 | ||
| subcooling (K) | 3 | 3 | 3 | 2.94 | 2.82 | 2.71 | 2.61 | ||
| 50°C | Cooling capacity (Watts) | — | 8893 | 7652 | 6495 | 5429 | 4465 | 3602 | 2835 |
| Power input (KW) | 4.17 | 3.84 | 3.51 | 3.17 | 2.82 | 2.48 | 2.14 | ||
| Current (Amps) | 7.34 | 6.87 | 6.4 | 5.93 | 5.48 | 5.04 | 4.64 | ||
| Mass flow (Kg/h) | 352 | 290 | 237 | 192.5 | 154.3 | 121.8 | 94.1 | ||
| Operating mode | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Condensing SDT (°C) | 58.5 | 57.5 | 56.6 | 55.7 | 54.9 | 54.1 | 53.4 | ||
| subcooling (K) | 3 | 3 | 2.95 | 2.84 | 2.73 | 2.64 | 2.55 |
Result
| Power input including fan power absorbtion | |
| Capacity steps | 100% |
| Cooling capacity | 8,05 kW |
| Evaporator capacity | 8,05 kW |
| Power input | 3,46 kW |
| Current (400V) | 5,42 A |
| Voltage range | 380-420V |
| Mass flow | 220 kg/h |
| Condensing SDT | 38,3 °C |
| Liquid subcooling | 2,91 K |
| Operating mode | Standard |

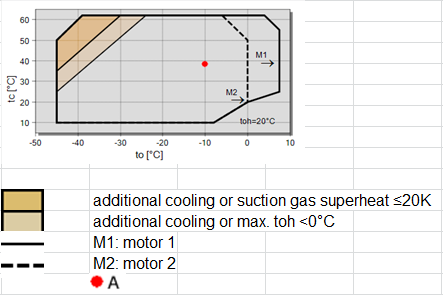

Application Limits
Technical Data
| Weight | 182,5 kg |
| Total width | 1140 mm |
| Total depth | 950 mm |
| Total height | 723 mm |
| Connection suction line | 16 mm – 5/8” |
| Connection liquid line | 16 mm – 5/8” |
| Voltage (50Hz, more on request) | 230V-1-50Hz (Standard) |
| Current / Power consumption of each fan (50Hz) | 1,8 A / 330 W |
| Air flow condenser 50Hz | 9000 m³/h |
| Voltage (60Hz, more on request) | 230V-1-60Hz (Standard) |
| Current / Power consumption of each fan (60Hz) | 1,8 A / 330 W |
| Air flow condenser 60Hz | 9000 m³/h |
| Coil Volume | 1,8 dm³ |
| Extent of delivery (Standard) | |
| Liquid receiver with shut-off valve | Standard |
| Discharge gas line | Standard |
| Connection for pressure relief valve | Standard |
| Fans: Number | 2 x EC |
| Protective charge | Standard |
| Available Options | |
| ECOLINE with VARISTEP (CRII) | Option |
| Condenser with improved corrosion protection, plastic coated fins or copper fins | Option |
| Oil separator with check valve | Option |
| Accessory pack (HP/LP switches, complete wiring, liquid line + filter drier + sight glass) | Option |
| Wiring of electrical components to terminal box or junction box | Option |
| Adjustable high and low pressure switch | Option |
| Speed control fan, control range high pressure | 5 .. 15 bar // 8 .. 25 bar |
| Oil heater | Option |
| Check valve | Option |
| Liquid receiver with larger volume | Option |
| Weather protection housing, mounting kit | Option |
| Sound measurement | |
| Data of compressors: see compressor program | |
| Max. refrigerant charge 90% at 20°C / 68°F | |
| Receiver type (Standard) | F152H |
| R22 | 16,3 kg |
| R134a | 16,5 kg |
| R407C | 15,6 kg |
| R404A/R507A | 14,4 kg |
| R407A | 15,8 kg |
| R407F | 15,4 kg |
| R448A | 15 kg |
| R449A | 15,1 kg |
| R450A | 16,1 kg |
| R454C | 14,3 kg |
| R455A | 14,2 kg |
| R513A | 16,5 kg |
| R1234yf | 15 kg |

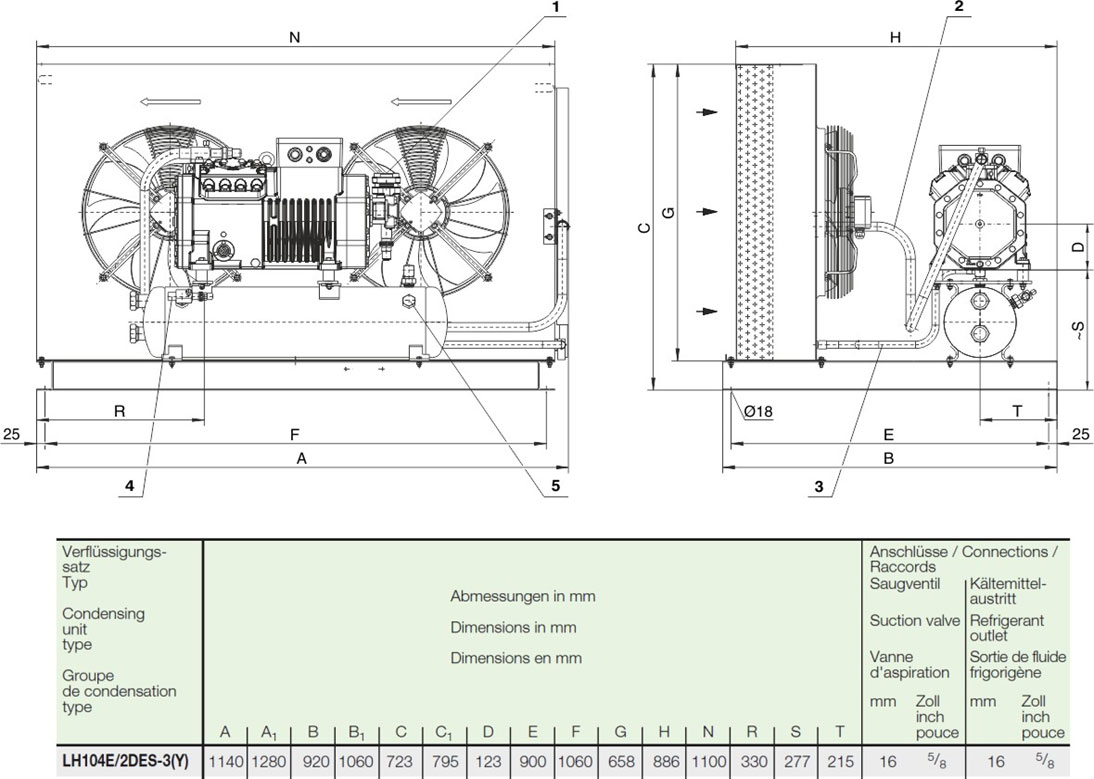

Dimensions and Connections
