Capped Line Valves (Angle) Male SAE Side to Male BSP Bottom

Add to Quote
SKU: N/A Category:
henrytechlogo 150px
Description

, , , , , , , , ,

Brand

Henry Technology

henrytechlogo 150px

Specifications



Part No.



Description

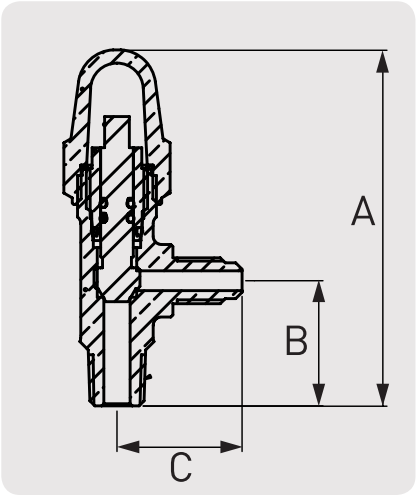

 Dimensions (mm) Weight (kg)
A B C
2201-0404 1/4 MSAE x 1/4 MBSP 86 30 30 0.17
2201-0406 1/4 MSAE x 3/8 MBSP 86 30 30 0.17
2201-0408 1/4 MSAE x 1/2 MBSP 104 35 34 0.30
2201-0604 3/8 MSAE x 1/4 MBSP 86 30 30 0.18
2201-0606 3/8 MSAE x 3/8 MBSP 86 30 30 0.18
2201-0608 3/8 MSAE x 1/2 MBSP 104 35 37 0.31
2201-0806 1/2 MSAE x 3/8 MBSP 104 35 35 0.30
2201-0808 1/2 MSAE x 1/2 MBSP 104 35 35 0.31
2201-1008 5/8 MSAE x 1/2 MBSP 104 35 35 0.31
2201-1012 5/8 MSAE x 3/4 MBSP 122 43 39 0.41
