Check Valves 205 series

Conn. Size ID (Inch)

Clear

SKU: N/A Category: Check Valves

Conn. Size ID (Inch)	1-1/8, 1-3/8, 1-5/8, 1-5/8-15, 2-1/8, 2-5/8, 7/8

Brand

Henry Technology

Specifications

Part No.	Connection Size ID (Inch)	Dimensions (mm)				Kv (m3/Hr)	Weight (kg)	CE Cat

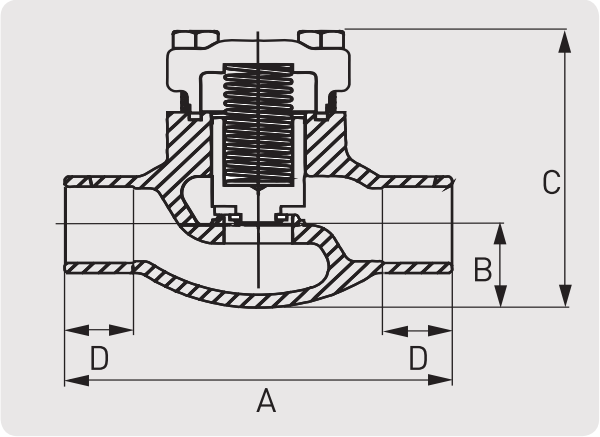

Part No.	Connection Size ID (Inch)	A	B	C	D	Kv (m3/Hr)	Weight (kg)	CE Cat
205-7/8	7/8	108	25	80	19	6.1	1.24	SEP
205-1-1/8	1-1/8	124	29	98	24	8.6	2.00	SEP
205-1-3/8	1-3/8	137	32	108	25	11.9	2.74	Cat I
205-1-5/8	1-5/8	165	38	129	29	15.4	4.23	Cat I
** 205-1-5/8-15	1-5/8	165	38	129	29	15.4	4.23	–
205-2-1/8	2-1/8	216	51	157	38	25.5	7.76	Cat I
205-2-5/8	2-5/8	279	57	183	43	42.3	12.44	Cat I

** Designed for Heat Reclaim Bypass
