Elbow Connector

Nominal Size

Clear

SKU: N/A Category: Rotalock Connectors

Nominal Size	3/8”, 1/2”, 5/8”, 3/4”, 7/8”, 1 1/8”

Brand

Henry Technology

Specifications

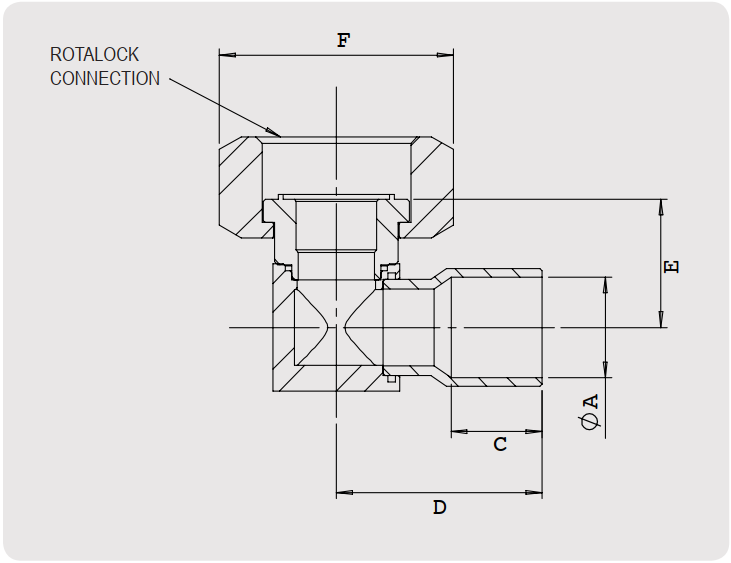

Part No.	ØA (ID)		Rotalock Connection	C ±1	D ±1	E ±1	F A/F
Part No.	Nominal Size	Solder Size	Rotalock Connection	C ±1	D ±1	E ±1	F A/F
291-0612	3/8”	9.58~9.78	3/4”	9.5	25	44	24
291-0812	1/2”	12.75~12.95	3/4”	13	25	44	24
291-0816	1/2”	12.75~12.85	1”	13	25	44	30
291-1016	5/8”	15.93~16.13	1”	14	32	44	30
291-1216	3/4”	19.10~19.30	1”	20	39	44	30
291-1416	7/8”	22.28~22.48	1”	24	44	44	30
291-1020	5/8”	15.93~16.13	1 1/4”	14	40	27	36
291-1420	7/8”	22.28~22.48	1 1/4”	24	50	27	36
291-1820	1 1/8”	28.65~28.85	1 1/4”	28	57	27	36
291-1828	1 1/8”	28.65~28.85	1 3/4”	23	50	30	50
291-2228	1 1/8”	28.65~28.85	1 3/4”	25	57	30	50
