Helical Oil Separators – High Pressure Range

Conn Size (inch)

Clear

SKU: N/A Category: Helical Oil Separators

Conn Size (inch)	1 1/8 ODS, 1 3/8 ODS

Brand

Henry Technology

Specifications

Part No

Conn Size (inch)

Dimensions (mm)

Mounting details

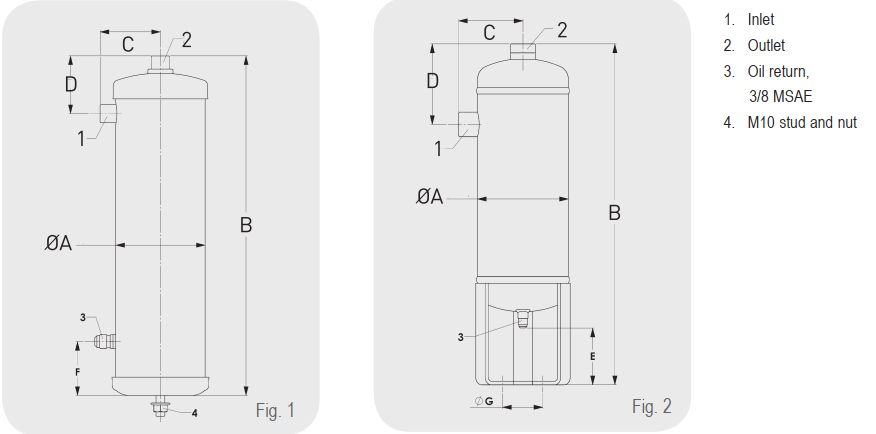

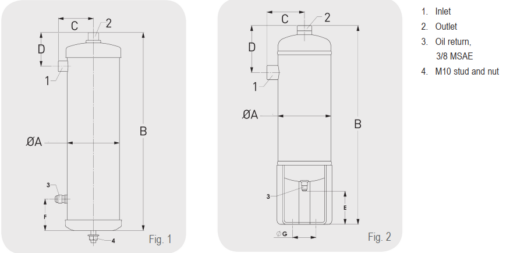

Drawing reference

Weight (kg)

Pre-charge qty (l)

CE Cat

Ø A

B

C

D

E

F

Ø G

SH-5188-CE

1 1/8 ODS

102

500

75

93

N/A

61

N/A

M10

fig.2

4.5

0.4

Cat I

SH-5188X-CE

1 1/8 ODS

102

500

75

93

N/A

61

N/A

M10

fig.1

4.5

0.4

Cat I

SH-5190-CE

1 3/8 ODS

152

570

108

135

95

N/A

100

3 x Ø14mm slots

fig.5

9.5

1.1

Cat II
