Helical Oil Separators – Oil Separator/Reservoir Range

Conn Size (inch)

Clear

SKU: N/A Category: Helical Oil Separators

Conn Size (inch)	1 3/8 ODS, 1 5/8 ODS, 2 1/8 ODS, 2 5/8 ODS

Brand

Henry Technology

Specifications

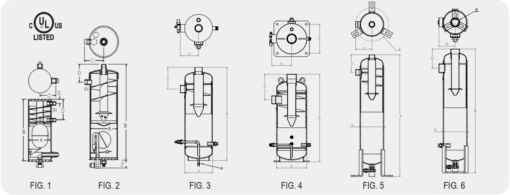

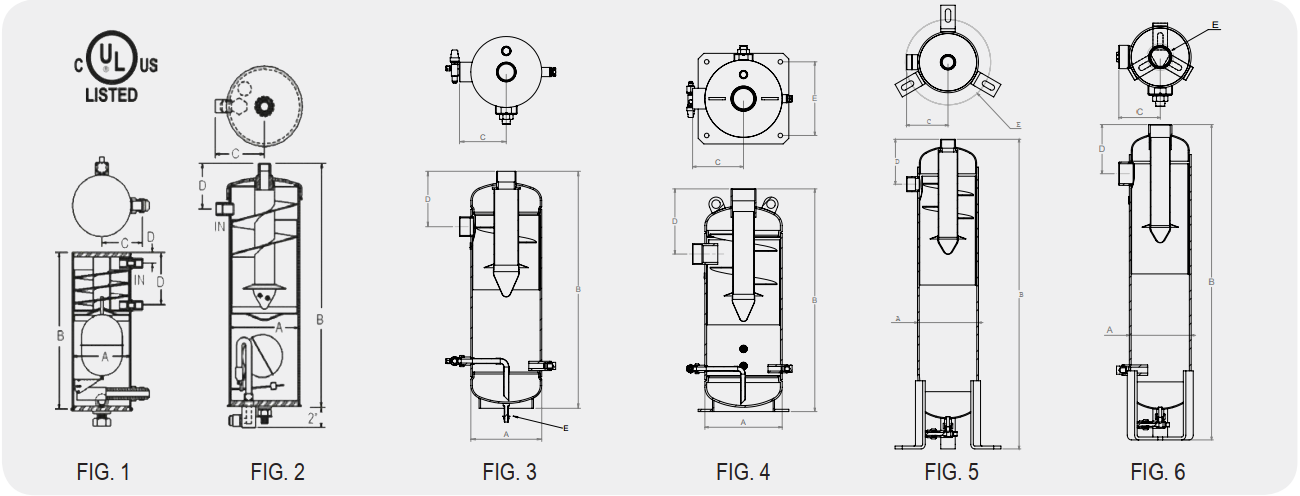

Part No	Conn Size (inch)	Dimensions (mm)					Drawing reference	Weight (kg)	Maximum oil capacity (Ltr)
Part No	Conn Size (inch)	A	B	C	D	E (Mounting details)	Drawing reference	Weight (kg)	Maximum oil capacity (Ltr)
S-5302	2 1/8 ODS	219	732	145	171	M12	fig.3	23	7.5
S-5303	2 5/8 ODS	273	770	180	214	320	fig.4	43	9.5
S-5390	1 3/8 ODS	168	854	114	124	235	fig.5	20	6
S-5392	1 5/8 ODS	168	857	117	127	240	fig.5	20	6
S-5394	2 1/8 ODS	168	859	113	134	113	fig.6	20	6
