| Connection Size ID & Weight | 3/8" 1.8kg, 3/8" 2.2kg, 1/2" 2.5kg, 5/8" 2.9kg, 7/8" 3.2kg, 1 1/8" 3.6kg, 1 3/8" 4.5kg, 1 3/8" 3.2kg, 1 5/8" 3.5kg, 2 1/8" 3.6kg |
|---|
Brand
Henry Technology
Specifications
|
Part No. |
Connection Size I.D.
(Inch) |

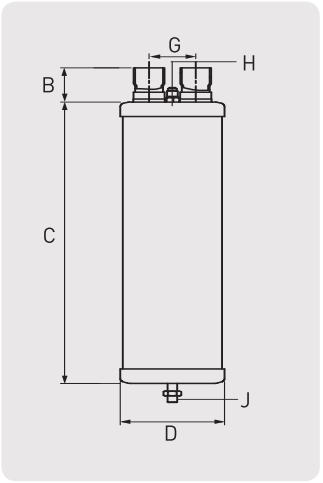

Dimensions | Oil
Pre-charge (ml) * |
Weight (kg) |
|||||
|
B |
C |
D |
G |
H
MSAE |
J
THREAD |
||||
| 3210-6406S | 3/8 | 32 | 148 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 1.8 |
| 3210-6406 | 3/8 | 32 | 245 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 2.2 |
| 3210-6408 | 1/2 | 33.5 | 245 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 2.5 |
| 3210-6410 | 5/8 | 38.5 | 300 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 2.9 |
| 3210-6414 | 7/8 | 40 | 344 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 3.2 |
| 3210-6418 | 1 1/8 | 45 | 370 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 3.6 |
| 3210-6422 | 1 3/8 | 49 | 475 | 107 | 48 | 1/4 | M10 x 1.5 | 480 | 4.5 |
| 3210-9622 | 1 3/8 | 43 | 352 | 153 | 75 | 3/8 | M10 x 1.5 | 1230 | 3.2 |
| 3210-9626 | 1 5/8 | 50 | 429 | 153 | 75 | 3/8 | M10 x 1.5 | 1230 | 3.5 |
| 3210-9634 | 2 1/8 | 55 | 432 | 153 | 75 | 3/8 | M10 x 1.5 | 1230 | 3.6 |
| Nominal Capacity kW at Evaporating Temperature °C | |||||||||||||||
|
Part No. |
R22 | R404A | R134a | ||||||||||||
| -30 | -20 | -10 | 0 | 5 | -30 | -20 | 10 | 0 | 5 | -30 | -20 | -10 | 0 | 5 | |
| 3210-6406S | 3.0 | 3.2 | 3.6 | 3.8 | 4.2 | 3.0 | 3.2 | 3.6 | 3.8 | 4.2 | 2.7 | 2.9 | 3.2 | 3.4 | 3.8 |
| 3210-6406 | 4.1 | 4.3 | 5.0 | 5.1 | 5.4 | 4.1 | 4.3 | 5.0 | 5.1 | 5.4 | 3.7 | 3.9 | 4.5 | 4.6 | 4.9 |
| 3210-6408 | 5.8 | 6.2 | 6.5 | 6.8 | 7.0 | 5.8 | 6.2 | 6.5 | 6.8 | 7.0 | 5.2 | 5.6 | 5.9 | 6.1 | 6.3 |
| 3210-6410 | 16.9 | 17.5 | 18.2 | 18.8 | 19.3 | 15.4 | 16.4 | 17.5 | 18.5 | 19.3 | 15.2 | 15.8 | 16.4 | 16.9 | 17.4 |
| 3210-6414 | 25.4 | 26.2 | 26.9 | 27.6 | 28.1 | 24.0 | 25.2 | 26.6 | 28.0 | 28.8 | 22.9 | 23.8 | 24.2 | 24.8 | 25.3 |
| 3210-6418 | 33.1 | 34.3 | 35.3 | 36.4 | 37.0 | 31.7 | 33.4 | 35.0 | 36.6 | 37.4 | 29.8 | 30.9 | 31.8 | 32.8 | 33.3 |
| 3210-6422 | 42.1 | 43.6 | 44.8 | 46.3 | 47.5 | 40.1 | 43.3 | 47.5 | 47.7 | 49.0 | 37.9 | 39.2 | 40.3 | 41.7 | 42.8 |
| 3210-9622 | 46.7 | 47.4 | 48.0 | 48.6 | 49.3 | 43.1 | 45.2 | 48.3 | 49.5 | 50.8 | 42.0 | 42.7 | 43.2 | 43.8 | 44.4 |
| 3210-9626 | 57.7 | 58.9 | 60.5 | 62.0 | 63.2 | 54.2 | 57.3 | 60.5 | 63.6 | 65.1 | 51.9 | 53.0 | 54.4 | 55.8 | 56.9 |
| 3210-9634 | 100.1 | 102.3 | 103.5 | 104.6 | 105.5 | 93.4 | 98.4 | 102.2 | 106.0 | 108.6 | 90.0 | 92.0 | 93.1 | 94.1 | 95.0 |
