Industrial Chillers 4 – 50kW

Thermex chillers are designed supply chilled water to heat developing processes. The unit are manufactured in Australia to suit local condition and give our customer the solutions they need.

Add to Quote

Category: COMMERCIAL CHILLERS

Thermex chillers are designed supply chilled water to heat developing processes. The unit are manufactured in Australia to suit local condition and give our customer the solutions they need

Thy can be installed indoors or outdoors and can be configured to supply chilled water for

Potable water applications
Process cooling from an internal buffer tank
Process cooling to an external buffer tank

Features

The chillers are supplied with – as standard

An internal 80L buffer tank to protect the compressor from excessive start, close temperature tolerance, reduces thermal spikes and allows for vented design with no need for hydronics kit
Suitable for indoor or outdoor installation
Rugged galvanized steel construction
Components sourced from the industry’s leading suppliers
R134a refrigerant for high ambient temperature operation and the lowest GWP of all contemporary refrigerants
Integrated circulation pump
Comprehensive 12 months warranty on all parts and labour
Highly accurate electronic controller
316SS plate heat exchanger evaporator
Comprehensive factory testing before dispatch
Evaporator protection on all models

450kw 1

Chiller Application

Industrial process chillers are designed to circulate water to a heat producing process via a water pump. The water brings the heat back to the chiller where the compression cycle cools the water before it is returned to the heat process.

application

Technical Data

Model		TC03	TC04	TC05	TC07
System type	Chiller	Heat rejection		Air
Capacity ASHRAE COND	kW	3.5	4.6	5.4	6.5
Total power input	kW	2.41	2.75	3.01	3.27
Total running current	Amps	8.5	9.2	9.8	10.2
Motor size	HP	1.5	2.3	3.0	3.5
Chilled water flow rate	l/s	0.1	0.2	0.25	0.3
Water connections	mm	1” FBSP
Shipping weight – dry	Kg	170	175	180	185
Buffer Tank	Litres	80

Model		TC8	TC10	TC12
System type	Chiller	Heat rejection		Air
Capacity ASHRAE COND	kW	7.6	8.3	11.4
Total power input	kW	3.7	3.9	4.8
Total running current	Amps	11.0	12.0	13.0
Motor size	HP	4.0	4.5	6.0
Chilled water flow rate	l/s	0.3	0.4	0.6
Water connections	mm	1” FBSP
Shipping weight – dry	Kg	185	190	200
Buffer Tank	Litres	80	90

Model		TC15	TC18	TC20	TC25	TC27
System type	Chiller	Heat rejection		Air
Capacity ASHRAE COND	kW	15.1	17.0	19.8	22.5	24.6
Total power input	kW	6.25	6.85	7.75	9.37	9.37
Total running current	Amps	17.5	18.7	19.3	17.8	19.9
Motor size	HP	8.0	9.0	10.0	12.0	13.0
Chilled water flow rate	l/s	0.8	0.9	1.0	1.1	1.2
Water connections	mm	1” FBSP
Shipping weight – dry	Kg	215	225	232	245	260
Buffer Tank	Litres	175

Model		TC30A3	TC40A3	TC50A3
System type	Chiller	Heat rejection		Air
Capacity ASHRAE CONDITIONS	kW	29.5	39.0	48.9
Total power input	kW	12.56	16.5	19.66
Total running current	Amps	27.73	31.43	37.13
Motor size	HP	15	20	26
Chilled water flow rate	l/s	1.5	1.9	2.4
Water connections	mm	1 ½” FBSP
Shipping weight – dry	Kg	550	600	650
Buffer Tank	Litres	500

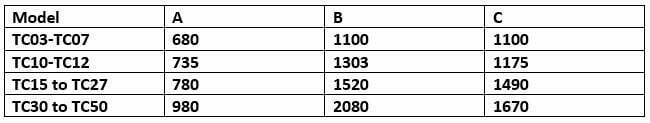

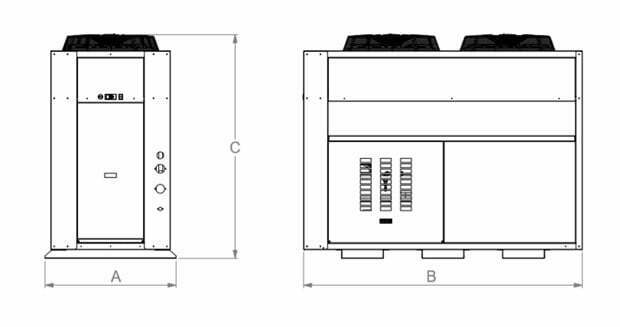

Dimension

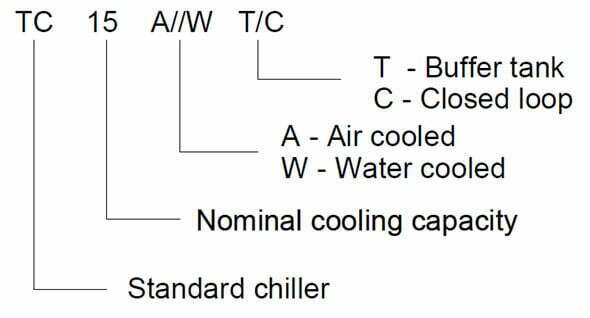

Selecting the Chiller

Pump performance

The unit will usually be supplied with a primary circulating pump as standard.

THERMEX can customize the pump for particular applications and these should be specified at the time of order – the standard pump supplied with the chiller is sized to produce 350kPa of pressure external to the chiller at the required flow rate

The unit has an internal water bypass designed to protect the heat exchanger – it should not be closed under any circumstances

Pump model	Current draw – Ph	Motor rating – kW	Model	Power
P1	3.1	0.5	TC03	1 Phase
P2	3.1	0.5	TC05 to TC12	1 Phase
P4	4.0	0.85	TC15	1 Phase
P5	5.2	1.2	TC18	1 Phase
P6	4.6	2.2	TC20 – TC30	3 Phase
P7	4.8	2.2	TC40-TC50	3 Phase
RPM	2900
Approvals	CE, WRAS, ACS, TR, EAC
Housing	Cast iron
Impeller	Stainless steel 316

Options

Close tolerance (CT)

The chiller can be manufactured with either a hot gas bypass valve or a VFD on the compressor for close temperature tolerance. Standard tolerance achievable is ±0.5C depending on load conditions

The valve acts as to unload the refrigeration effect to the evaporator as the chilled water temperature approached set point.

If the compressor is fitted with a VFD this will slow the compressor down as water temperature approaches set point and speed it up as it approached set point plus hysteresis. The software has a PID loop to ensure maximum efficiency and maintain temperature control.

BMS Connectivity

The chiller can be connected to the high or low level BMS

Low level connectivity will be dry contact for

– Master run

– Master fault

High level connectivity is Modbus, SNMP and Bacnet over Ethernet without the need for a gate way

Tandem/ N+1 (T)

The chiller can be wired if they are to be installed in a N+1 arrangement so the lead chiller manages the duty cycling of the chillers and controls the chillers if a fault should develop in one of the chillers

Potable water supply

(I)

The chiller can be manufactured to deliver water for potable water application. A typical installation requires the chiller to be connected to the main water and the pressure from the main is used to supply the process.

The chiller will have a heat exchanger installed which will cool the mains water to the supply temperature in a single pass

If the process does not require water the chillers operation is unaffected

This method of construction also allows the chiller to be used to cool water temperatures above 25C

Remote Condensers

(R)

The chiller can be manufactured as a split system. The evaporator can be installed indoors in a plant room for example and the condenser installed outdoors.

Typically, the maximum distance between the 2 halves of the chiller is 20 meters – for longer runs contact Thermex’s engineering staff

All operational cooling capacity, power consumption and current draw data shown above is based on the chiller operating at the limit of its design and is intended to be an indication only.

Each chiller will be individually designed to customer requirements and a detailed product specification will be supplied at time of order including installation instructions and dimensions. The power consumed by the unit and the current it will draw vary depending on how the chiller is constructed. The chillers performance may also vary slightly from the figures above again based on customer requirements.

THERMEX Solutions product range is subject to change without notice

WARRANTY

THERMEX Solutions warrants all it products for 12 months from the agreed commissioning date – no later than 30 days from invoicing date.
The warranty is to the first purchases of the unit
The warranty covers all parts and labour to rectify the unit
The warranty is subject to THERMEX Solutions terms and conditions which will be provided at the time of order
Warranty is subject to Thermex Solutions full terms and conditions

About Thermex Solution

Thermex Solutions is Australia’s largest manufacturer of small capacity specialsied industrial water chillers. The technical team at Thermex have a combined 50 years in the Australian chiller industry – no other company can offer this level of engineering support for our customers critical applications.

Rather than offer imported chillers Thermex has dedicated itself to providing locally specified and manufactured chillers which are supplied with components sourced from the industry’s leading suppliers. With specifying chillers experience counts and no other company has the experience to offer the advice and solutions the market requires.

As the Australian market grows and diversifies, Thermex can offer expert advice on chillers, heat pumps, variable speed high efficiency scroll chillers, air handling and more.

Thermex is back by a nationwide team of service technicians who are trained in the operation and maintenance of Thermex chillers

Industrial Chillers 4 – 50kW
