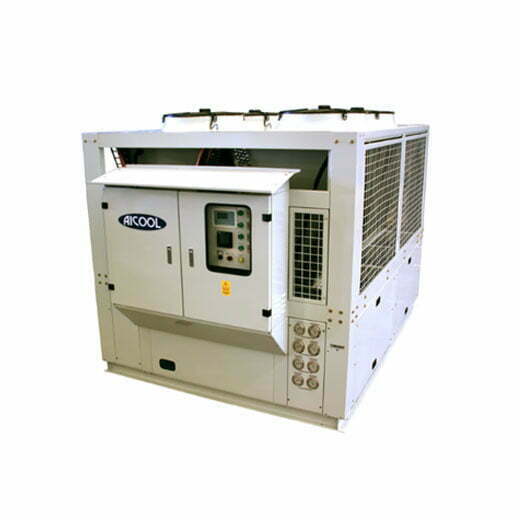

Industrial Chillers XA Services 50 to 350KW

The XA series Chillers are designed to cool processes with large heat loads

Add to Quote

Category: COMMERCIAL CHILLERS

The XA series Chillers are designed to cool processes with large heat loads

They are outdoor chillers and can be configured to supply chilled water for

Potable water applications
Process cooling to an external buffer tank

Features

The chillers are supplied with – as standard

Suitable for outdoor installation
Rugged galvanized steel construction on welded frames
Seamless copper pipework
Components sourced from the industry’s leading suppliers
R134a refrigerant available for high ambient temperature operation and the lowest GWP of all contemporary refrigerants
Integrated circulation pump available
Comprehensive 12 months warranty on all parts and labour
Highly accurate electronic controller – plc control for PID compressor staging control
Shell and tube evaporator
Comprehensive factory testing before dispatch

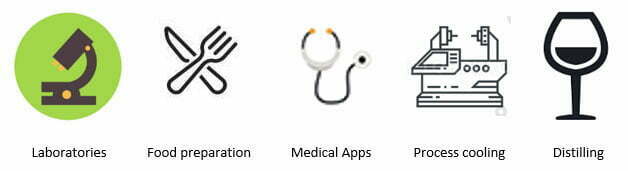

Chiller Application

Industrial process chillers are designed to circulate water to a heat producing process via a water pump. The water brings the heat back to the chiller where the compression cycle cools the water before it is returned to the heat process.

application

Technical Data

Model		XA2.20.SY	XA2-25.SY		XA2.30.SY
System type	Chiller	Heat rejection		Air
Capacity	TR	17.2	19.7		25.2
R407c	Btu/hr	206888
10C water supply	kW	60.6	69.4		88.6
35C ambient	EER (kW/TR)
Capacity control	%	0-50%-100%
Refrigerant	Type	R407c
Total power input	kW	17.1	18.9		24.8
Total running current	Amps	31.8	34.4		51.2
Power requirements	V/Hz/Ph	380-415/50/3
COMPRESSOR		Scroll Hermetic
Motor size	HP	2 x 10	2 x 12.5		2 x 15
RPM	1/min	2900
QTY		2	2		2
Maximum Power input	kW	14.4	16.2		22.1
Total running current	Amps	27.4	30.0		46.8
MCC/ comp	Amps	26.9	31.0		42.0
Rated load current / comp	Amps	17.2	19.9		26.9
Locked rotor amps	Amps	118	118		174
Oil charge / comp	L	1.1	1.3		1.6
Oil type	POE
CONDENSER	Air cooled – heavy duty – high ambient design
Material	Aluminum, blue fin on copper tube
Tube diameter	Inch	3/8
Fin spacing	mm	2.1
CONDENSER FANS	External, axial fans, 4 pole – speed controlled
Fan speed	Rpm	900
Fan diameter	mm	630	630		630
No fans		2	2		2
Total power input	kW	2.7	2.7		2.7
Total running current	Amps	4.4	4.4		4.4
Total air flow	M3/ hr	23000
EVAPORATOR	Shell and tube – DX
No. refrigeration circuits
Chilled water flow rate	l/s	3.0	3.3		4.2
Pressure drop	kPa	50
Inlet / outlet CHW Temperature	C	10/05
Working temperature range	C	05/20
Water connections	mm	50	50		50
Evaporator protection		Flow switch
CONTROLLER	PLC
HP Safety	2850kPa	LP Safety		375kPA
Shipping weight – dry	Kg	785	850		875
Buffer Tank	Litres	–
BMS protocols	–	Buffer tank construction		–

Model		XA.4.40.SY	XA.4.50.SY		XA.4.60.SY
System type	Chiller	Heat rejection		Air
Capacity	TR	34.5	39.5		50.4
R407c	Btu/hr	104232	119368		152392
10C water supply	kW	121.2	138.8		177.2
35C ambient	EER (kW/TR)
Capacity control	%	0-25%-50%-75%-100%
Refrigerant	Type	R407c
Total power input	kW	34.2	37.8		49.6
Total running current	Amps	62.6	68.8		102.4
Power requirements	V/Hz/Ph	380-415/50/3
COMPRESSOR		Scroll Hermetic
Motor size	HP	4 x 10	4 x 12.5		4 x 15
RPM	1/min	2900
QTY		4	4		4
Maximum Power input	kW	14.4	32.4		22.1
Total running current	Amps	27.4	60.0		93.6
MCC/ comp	Amps	26.9	31.0		42.0
Rated load current / comp	Amps	17.2	19.9		26.9
Locked rotor amps	Amps	118	118		174
Oil charge / comp	L	1.1	1.3		1.6
Oil type	POE
CONDENSER	Air cooled – heavy duty – high ambient design
Material	Aluminum, blue fin on copper tube
Tube diameter	Inch	3/8
Fin spacing	mm	2.1
CONDENSER FANS	External, axial fans, 4 pole – speed controlled
Fan speed	Rpm	900
Fan diameter	mm	630	630		630
No fans		4	4		4
Total power input	kW	5.4	5.4		5.4
Total running current	Amps	8.8	8.8		8.8
Total air flow	M3/ hr	46000	46000		46000
EVAPORATOR	Shell and tube – DX
No. refrigeration circuits
Chilled water flow rate	l/s	6.0	6.6		8.4
Pressure drop	kPa	50
Inlet / outlet CHW Temperature	C	10/05
Working temperature range	C	05/20
Water connections	mm	100	100		100
Evaporator protection		Flow switch
CONTROLLER	PLC
HP Safety	2850kPa	LP Safety		375kPA
Shipping weight – dry	Kg	1135	1230		1450
Buffer Tank	Litres	–
BMS protocols	–	Buffer tank construction		–

Model		XA.2.40.SY	XA.2.50.SY		XA.2.60.SY
System type	Chiller	Heat rejection		Air
Capacity	TR	33.4	41.9		51.3
R407c	Btu/hr	400121	502540		615202
10C water supply	kW	117.2	147.2		180.2
35C ambient	EER (kW/TR)
Capacity control	%	0-50%-100%
Refrigerant	Type	R407c
Total power input	kW	34.4	41.4		51.9
Total running current	Amps	59.6	73.6		91.0
Power requirements	V/Hz/Ph	380-415/50/3
COMPRESSOR		Scroll Hermetic
Motor size	HP	2 x 20	2 x 25		2 x 30
RPM	1/min	2900
QTY		2	2		2
Maximum Power input	kW	29.0	36.0		43.8
Total running current	Amps	50.8	61.0		77.8
MCC/ comp	Amps	53.0	64.8		83.0
Rated load current / comp	Amps	34.0	39.1		53.2
Locked rotor amps	Amps	225.0	272		310
Oil charge / comp	L	2.0	2.5		3.5
Oil type	POE
CONDENSER	Air cooled – heavy duty – high ambient design
Material	Aluminum, blue fin on copper tube
Tube diameter	Inch	3/8
Fin spacing	mm	2.1
CONDENSER FANS	External, axial fans, 4 pole – speed controlled
Fan speed	Rpm	900
Fan diameter	mm	630	630		630
No fans		4	4		6
Total power input	kW	5.4	5.4		8.1
Total running current	Amps	8.8	8.8		13.2
Total air flow	M3/ hr	46000	46000		69000
EVAPORATOR	Shell and tube – DX
No. refrigeration circuits
Chilled water flow rate	l/s	5.8	7.1		9.0
Pressure drop	kPa	50
Inlet / outlet CHW Temperature	C	10/05
Working temperature range	C	05/20
Water connections	mm	80	100		100
Evaporator protection		Flow switch
CONTROLLER	PLC
HP Safety	2850kPa	LP Safety		375kPA
Shipping weight – dry	Kg	1225	1475		1670
Buffer Tank	Litres	–
BMS protocols	–	Buffer tank construction		–

Model		XA.4.80.SY	XA.4.100.SY		XA-4-120.SY
System type	Chiller	Heat rejection		Air
Capacity	TR	66.7	83.7		102.5
R407c	Btu/hr
10C water supply	kW	234.4	294.4		360.4
35C ambient	EER (kW/TR)
Capacity control	%	0-25%- 50%- 75% -100%
Refrigerant	Type	R407c
Total power input	kW	68.8	82.8		103.8
Total running current	Amps	119.2	147.2		182
Power requirements	V/Hz/Ph	380-415/50/3
COMPRESSOR		Scroll Hermetic
Motor size	HP	4 x 20	4 x 25		4 x 30
RPM	1/min	2900
QTY		4	4		4
Maximum Power input	kW	58	72.0		87.6
Total running current	Amps	101.6	122		145.6
MCC/ comp	Amps	53.0	64.8		83.0
Rated load current / comp	Amps	34.0	39.1		53.2
Locked rotor amps	Amps	225.0	272		310
Oil charge / comp	L	2.0	2.5		3.5
Oil type	POE
CONDENSER	Air cooled – heavy duty – high ambient design
Material	Aluminum, blue fin on copper tube
Tube diameter	Inch	3/8
Fin spacing	mm	2.1
CONDENSER FANS	External, axial fans, 4 pole – speed controlled
Fan speed	Rpm	900
Fan diameter	mm	630	630		630
No fans		6	6		8
Total power input	kW	8.1	8.1		8.1
Total running current	Amps	13.2	13.2		13.2
Total air flow	M3/ hr	69000	69000		69000
EVAPORATOR	Shell and tube – DX
No. refrigeration circuits
Chilled water flow rate	l/s	11	14		17.5
Pressure drop	kPa	50
Inlet / outlet CHW Temperature	C	10/05
Working temperature range	C	05/20
Water connections	mm	100	125		125
Evaporator protection		Flow switch
CONTROLLER	PLC
HP Safety	2850kPa	LP Safety		375kPA
Shipping weight – dry	Kg	2175	2575		2750
Buffer Tank	Litres	–
BMS protocols	–	Buffer tank construction		–

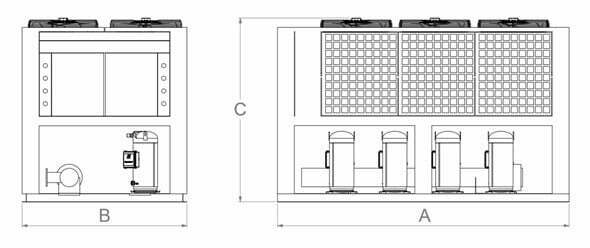

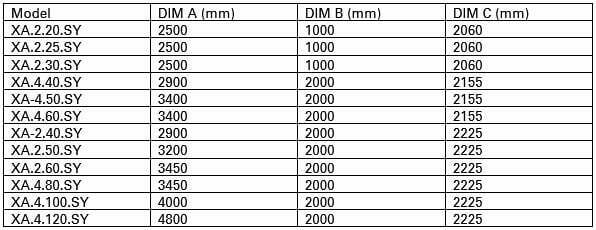

Dimension

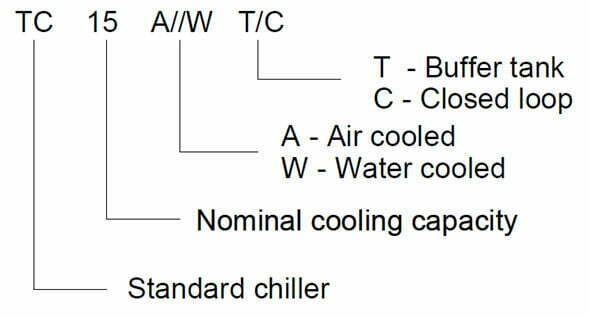

Chiller nomenclature

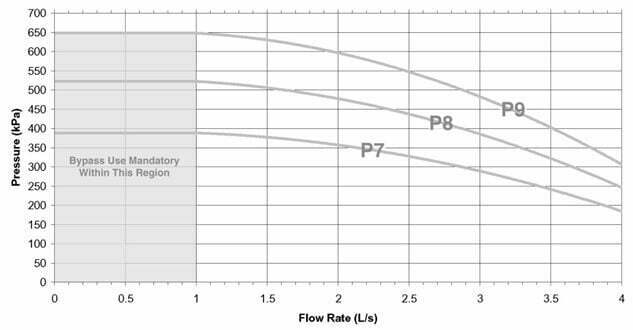

Pump data

Pump Model	Current Drw – 3 Ph	Motor rating – kW	Weight
P7	3.0	1.2	28.4
P8	4.6	2.2	35.9
P9
RPM	2900
Approvals	CE WRAS,ACS,TR,EAC
Housing	Cast iron
Impeller	Stainless steel 316

Process chillers are typically not for potable water applications although the chiller can be designed to supply potable water.

All Thermex chillers up to 50kW are supplied with a buffer tank – the buffer tank is an important feature in all chillers and the bigger the better. The buffer tank in a process chiller has many benefits such as

helping protect the compressor from excessive starts
preventing thermal spikes impacting on the compressor
allows closer temperature tolerance to the process
having stored chilled water to allow a managed shut down of a process should there be a problem with the cooling cycle
allows for a vented design and prevent the need for a hydronics kit

All Thermex process industrial chillers are supplied with high efficiency scroll compressors supplied by Copeland. The scroll compressor is the latest in compressor technology

All Thermex water chillers use R134a refrigerant – R134a is a contemporary refrigerant with a low global warming potential. R134a refrigerant also has the benefit of being a low-pressure refrigerant gas – this allows Thermex chillers to operate in extreme ambient conditions- up to 52°C. Chinese and European manufactured chillers are rated at 35C ambient condition and are generally supplied with condensers that are not suited to these extreme conditions.

Installation

There are certain guidelines that need to be followed to ensure the chiller operates properly and reliably. When considering the purchase of a chiller the site should be prepared so the chiller can be installed an operated reliably

The chiller should also be installed on a level firm surface and should be bolted down to prevent the unit moving. It is not necessary to install the chiller with spring vibration eliminators – waffle pad is suffice to prevent vibration from the unit

The water pipe work too and from the chiller should be properly insulated to prevent sweating and to ensure the chiller operates as efficiently as possible

There should be adequate space around the chiller to allow proper ventilation of the cooling fans – the chiller should not be installed under an awning or installed indoors if there is not proper ventilation.

All operational cooling capacity, power consumption and current draw data shown above is based on the chiller operating at the limit of its design and is intended to be an indication only.

Each chiller will be individually designed to customer requirements and a detailed product specification will be supplied at time of order including installation instructions and dimensions. The power consumed by the unit and the current it will draw vary depending on how the chiller is constructed. The chillers performance may also vary slightly from the figures above again based on customer requirements.

THERMEX Solutions product range is subject to change without notice

Options

High corrosive environments	If the chiller is to be installed in an environment with corrosive elements present the chiller can be manufactured in such a way to extend the life of the unit These environments can be – Coastal which high levels of salt spray present – Mining with Sulphur present The coils on the units can be coated with Blygold to extend their life – the coil will lose efficiency if the bond between the copper and the aluminum starts to break down and Blugold will prevent this In the case where flammable gas is present an Ex or ATEX rated unit maybe required
Soft starters	In installations where the power supply is not robust soft starters can be supplied on the compressors to limit the in-rush current on compressor start up.
Redundant pumps	The units can be supplied with 2 pumps that duty cycle to share the wear and tear. The software can also start the pump sitting in redundancy if the duty pump develops a fault
High Ambient	For installations such as mine sites, especially in remote areas where the temperatures are extreme the chiller can be constructed to be able to handle these extreme temperatures

WARRANTY

THERMEX Solutions warrants all it products for 12 months from the agreed commissioning date – no later than 30 days from invoicing date.
The warranty is to the first purchases of the unit
The warranty covers all parts and labour to rectify the unit
The warranty is subject to THERMEX Solutions terms and conditions which will be provided at the time of order

About Thermex Solution

Thermex Solutions is Australia’s largest manufacturer of small capacity specialsied industrial water chillers. The technical team at Thermex have a combined 50 years in the Australian chiller industry – no other company can offer this level of engineering support for our customers critical applications.

Rather than offer imported chillers Thermex has dedicated itself to providing locally specified and manufactured chillers which are supplied with components sourced from the industry’s leading suppliers. With specifying chillers experience counts and no other company has the experience to offer the advice and solutions the market requires.

As the Australian market grows and diversifies, Thermex can offer expert advice on chillers, heat pumps, variable speed high efficiency scroll chillers, air handling and more.

Thermex is back by a nationwide team of service technicians who are trained in the operation and maintenance of Thermex chillers
