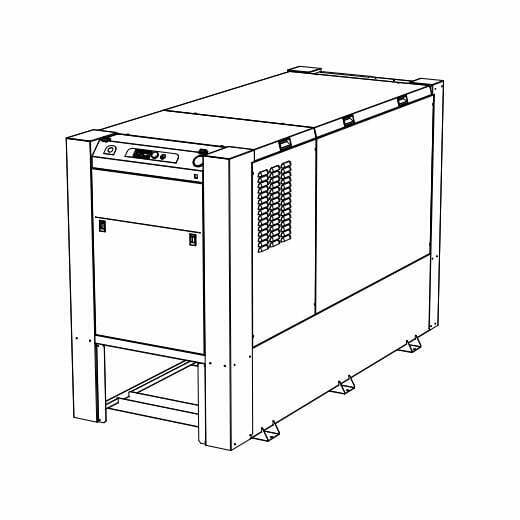

Industrial Water Cooled Chillers 5 – 50kW

Thermex chillers are designed supply chilled water to heat developing processes. The unit are manufactured in Australia to suit local conditions and give our customer the solutions they need

Thy can be installed indoors or outdoors and can be configured to supply chilled water for

Potable water applications
Process cooling from an internal buffer tank
Process cooling to an external buffer tank

Features

The chillers are supplied with – as standard

An internal buffer tank to protect the compressor from excessive start, close temperature tolerance, reduces thermal spikes and allows for vented design with no need for hydronics kit
Suitable for indoor or outdoor installation
Rugged galvanized steel construction
Components sourced from the industry’s leading suppliers
R407c refrigerant for efficient operation and one of the lowest GWP of all contemporary refrigerants
Integrated circulation pump
Comprehensive 12 months warranty on all parts and labour
Highly accurate electronic controller
316SS plate heat exchanger evaporator
Comprehensive factory testing before dispatch
Evaporator protection on all models

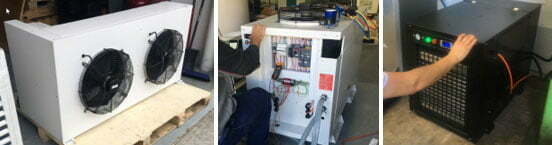

450kw 1

Chiller Application

Industrial process chillers are designed to circulate water to a heat producing process via a water pump. The water brings the heat back to the chiller where the compression cycle cools the water before it is returned to the heat process.

Water cooled chiller generally rely on a cooling tower for heat rejection and are supplied with a shell and tube condenser

application

Technical Data

Model		TC05W3	TC10W3	TC12W3	TC13W3	TC14W3
System type	Chiller	Heat rejection		Water
Capacity 10C Supply Cooling tower water 29.5/35C	kW	5.1	9.0	12.0	13.2	14.6
Total power input	kW	1.85	2.57	3.24	3.49	3.73
Heat rejection	kW	6.95	11.6	15.25	16.7	18.3
Total running current	Amps	5.5	6.9	8.3	7.8	9.0
Motor size	HP	1.8	3	4	4.5	5
Chilled water flow rate	l/s	0.3	0.5	0.6	0.7	0.7
Cooling tower flow rate	l/s	0.4	0.6	0.75	0.9	0.9
Water connections		1” FBSP – chilled water
Water connection		1” FBSP – condenser water
Shipping weight – dry	Kg	170	175	180	185	185
Buffer Tank	Litres	80			160

Model		TC18W3	TC20W3	TC24W3	TC27W3	TC32W3
System type	Chiller	Heat rejection		Water
Capacity 10C supply 29.5/35 Cooling tower water	kW	18.4	20.3	24.3	27.4	31.9
Total power input	kW	5.0	5.81	6.16	6.72	7.63
Heat rejection	kW	23.4	26.1	30.46	34.1	39.5
Total running current	Amps	10.4	12.7	12.7	14.3	15.8
Motor size	HP	6	7	8	9	10
Chilled water flow rate	l/s	0.9	1.0	1.2	1.4	1.6
Cooling tower flow rate	l/s	1.1	1.2	1.5	1.6	1.9
Water connections		1” FBSP chilled water				1 ½”
Water connections	mm	1” FBSP – condenser water		1 ½” FBSP
Shipping weight – dry	Kg	220	250	250	275	300
Buffer Tank	Litres	160				400

Model		TC35W3	TC40W3	TC45W3	TC60W3	TC75W3
System type	Chiller	Heat rejection		Water
Capacity 10C supply 29.5/35 Cooling tower water	kW	36.6	40.5	46.8	62.0	78.5
Total power input	kW	9.46	11.12	12.12	15.2	18.4
Heat rejection	kW	46.1	51.2	59.0	77.2	97.0
Total running current	Amps	18.7	21.3	27.0	30.2	37.0
Motor size	HP	12	13	15	20	26
Chilled water flow rate	l/s	1.1	2.0	2.2	3.0	3.7
Cooling tower flow rate	l/s	2.2	2.6	2.8	3.7	4.6
Water connections		1 1/2” FBSP – chilled water				2”
Water connections		1 ½” FBSP			2” FBSP
Shipping weight – dry	Kg	350	400	450	500	600
Buffer Tank	Litres	400

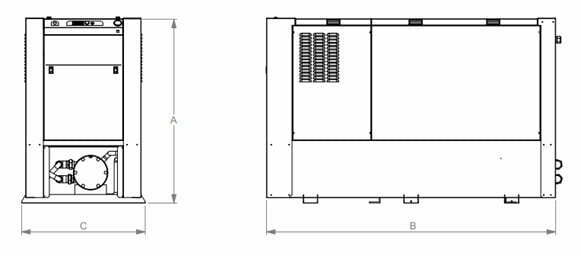

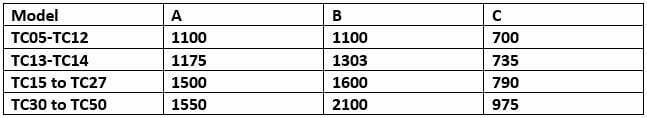

Dimension

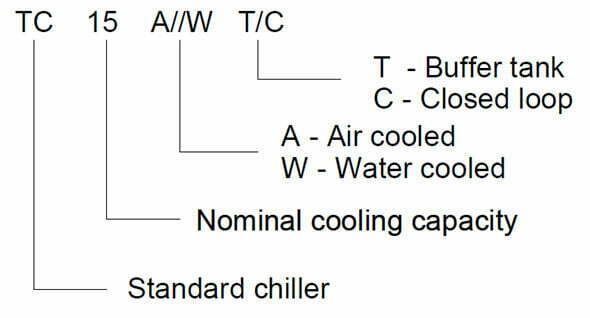

Selecting the chiller

Pump performance

The unit will usually be supplied with a primary circulating pump as standard.

THERMEX can customize the pump for particular applications and these should be specified at the time of order – the standard pump supplied with the chiller is sized to produce 350kPa of pressure external to the chiller at the required flow rate

The unit has an internal water bypass designed to protect the heat exchanger – it should not be closed under any circumstances

Pump model	Amp draw – 1 Ph	Amp draw – 3 Ph	Motor rating – kW	Model
P2	3.1		0.65	TC05-TC10
P3	3.1		0.65	TC12 to TC15
P4	3.1		1.5	TC18 to TC20
P5		3.0	1.2	TC24 to TC27
P6		3.0	1.2	TC20 – TC30
P7		4.8	2.2	TC32 to TC75
RPM	2900
Approvals	CE, WRAS, ACS, TR, EAC
Housing	Cast iron
Impeller	Stainless steel 316

Options

Close tolerance (CT)	The chiller can be manufactured with either a hot gas bypass valve or a VFD on the compressor for close temperature tolerance. Standard tolerance achievable is ±0.5C depending on load conditions The valve acts as to unload the refrigeration effect to the evaporator as the chilled water temperature approached set point. If the compressor is fitted with a VFD this will slow the compressor down as water temperature approaches set point and speed it up as it approached set point plus hysteresis. The software has a PID loop to ensure maximum efficiency and maintain temperature control.
BMS Connectivity	The chiller can be connected to the high or low level BMS Low level connectivity will be dry contact for – Master run – Master fault High level connectivity is Modbus, SNMP and Bacnet over Ethernet without the need for a gate way
Tandem/ N+1 (T)	The chiller can be wired if they are to be installed in a N+1 arrangement so the lead chiller manages the duty cycling of the chillers and controls the chillers if a fault should develop in one of the chillers
Potable water supply (I)	The chiller can be manufactured to deliver water for potable water application. A typical installation requires the chiller to be connected to the main water and the pressure from the main is used to supply the process. The chiller will have a heat exchanger installed which will cool the mains water to the supply temperature in a single pass If the process does not require water the chillers operation is unaffected This method of construction also allows the chiller to be used to cool water temperatures above 25C
Soft starters	In installations where the power supply is not robust soft starters can be supplied on the compressors to limit the in-rush current on compressor start up.
Redundant pumps	The units can be supplied with 2 pumps that duty cycle to share the wear and tear. The software can also start the pump sitting in redundancy if the duty pump develops a fault
Pump UPS (U)	The electrical box can be supplied with a separate set of terminals to allow an uninterruptable power supply to be wired so the pump will run continuously – this allows the chiller to keep pumping cold water to the process in the event the 3 phase supply develops and issue and allows the process to shut down in a managed way
Castors	The chiller can be supplied on wheels for ease of re-location

All operational cooling capacity, power consumption and current draw data shown above is based on the chiller operating at the limit of its design and is intended to be an indication only.

Each chiller will be individually designed to customer requirements and a detailed product specification will be supplied at time of order including installation instructions and dimensions. The power consumed by the unit and the current it will draw vary depending on how the chiller is constructed. The chillers performance may also vary slightly from the figures above again based on customer requirements.

THERMEX Solutions product range is subject to change without notice

WARRANTY

THERMEX Solutions warrants all it products for 12 months from the agreed commissioning date – no later than 30 days from invoicing date.
The warranty is to the first purchases of the unit
The warranty covers all parts and labour to rectify the unit
The warranty is subject to THERMEX Solutions terms and conditions which will be provided at the time of order
Warranty is subject to Thermex Solutions full terms and conditions

About Thermex Solution

Thermex Solutions is Australia’s largest manufacturer of small capacity specialsied industrial water chillers. The technical team at Thermex have a combined 50 years in the Australian chiller industry – no other company can offer this level of engineering support for our customers critical applications.

Rather than offer imported chillers Thermex has dedicated itself to providing locally specified and manufactured chillers which are supplied with components sourced from the industry’s leading suppliers. With specifying chillers experience counts and no other company has the experience to offer the advice and solutions the market requires.

As the Australian market grows and diversifies, Thermex can offer expert advice on chillers, heat pumps, variable speed high efficiency scroll chillers, air handling and more.

Thermex is back by a nationwide team of service technicians who are trained in the operation and maintenance of Thermex chillers
