Liquid Indicator LI-50 Series

The LI-50 series incorporating a Bulls-Eye with reflex lens. These pieces have the ability to indicate the actual level of a liquid without requiring the installation of a second indicator for light admission. Their reflex lens configuration appears dark in the presence of liquid and light when liquid is absent.

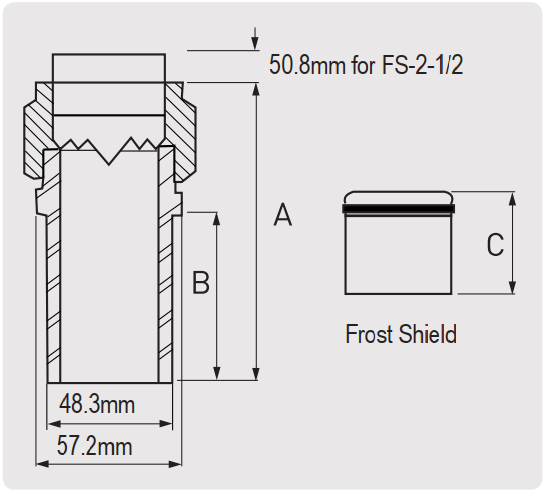

Also, to properly view systems internal liquid levels under frosting conditions or when insulation material is present, a Frost Shield option is available. Easily press fitted in front of the Bulls-Eye, this clear perspex cylinder aids clarity of vision for the operator.

Features (LI-50 series)
1. Bulls-Eye with reflex lens.
2. Removable top of hermetically sealed fused glass construction.
3. Plated steel construction; weld type housing ASME SA36 (ASTM A36)
4. Frost Shield option available.

Benefits
1. Provides clear view of systems internal liquid levels.
2. Avoids potential leakage path.
3. The housing is designed to be permanently welded into the pressure vessel.
4. Allows clear viewing of liquid levels under frosting conditions or when insulation material is present.
