Moisture Indicator – Female Solder Dual Port

Connection

Clear

SKU: N/A Category: Moisture Indicators

Connection	7/8 ID Solder, 1 1/8 ID Solder, 1 3/8 ID Solder, 1 5/8 ID Solder, 2 1/8 ID Solder

Brand

Henry Technology

Specifications

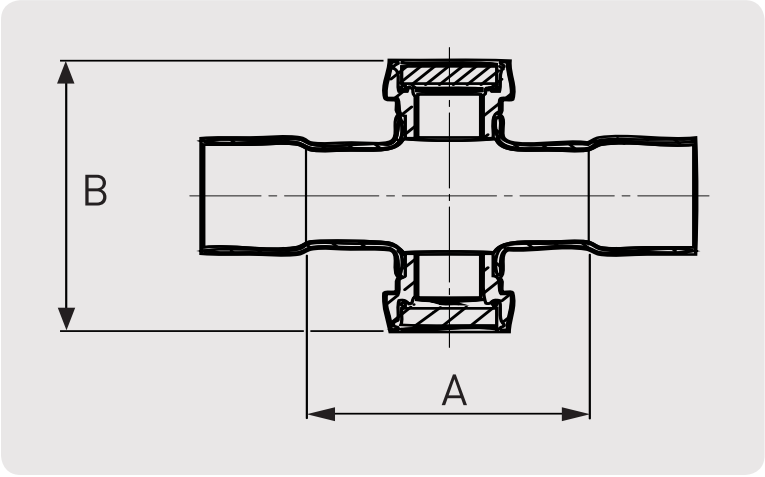

Part No.	Connection	DImensions		Weight (kg)
Part No.	Connection	Lay-In Length A	B	Weight (kg)
675-1414	7/8 ID Solder	122	72	0.41
675-1818	1 1/8 ID Solder	114	78	0.44
675-2222	1 3/8 ID Solder	151	84	0.50
675-2626	1 5/8 ID Solder	145	91	0.88
675-3434	2 1/8 ID Solder	132	104	0.65

Indication (ppm of water) Liquid Temperature (oC)	Dry (Green)			Caution (Light Green)			Wet (Yellow)
Indication (ppm of water) Liquid Temperature (oC)	25	40	50	25	40	50	25	40	50
R12	<5	<5	<5	5-25	5-40	5-70	>25	>40	>70
R134a (<20)	<35	<60	20-130	35-160	60-200	>130	>160	>200	–
R22	<25	<35	<50	25-145	35-200	50-290	>145	>200	>290
R407C(<25)	<40	<60	25-150	40-230	60-360	>150	>230	>360	–
R410A(<30)	<60	<75	30-170	60-280	75-420	>170	>280	>420	–
R404A/507 (<15)	<25	<45	15-120	25-150	45-180	>120	>150	>180	–
R502	<5	<5	<10	5-50	5-90	10-150	>50	>90	>150
