Rotalock Valves Solder Connection

Solder Size

Clear

SKU: N/A Category: Rotalock Valves

Solder Size	1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1 1/8", 1 3/8", 1 5/8", 2 1/8"

Brand

Henry Technology

Specifications

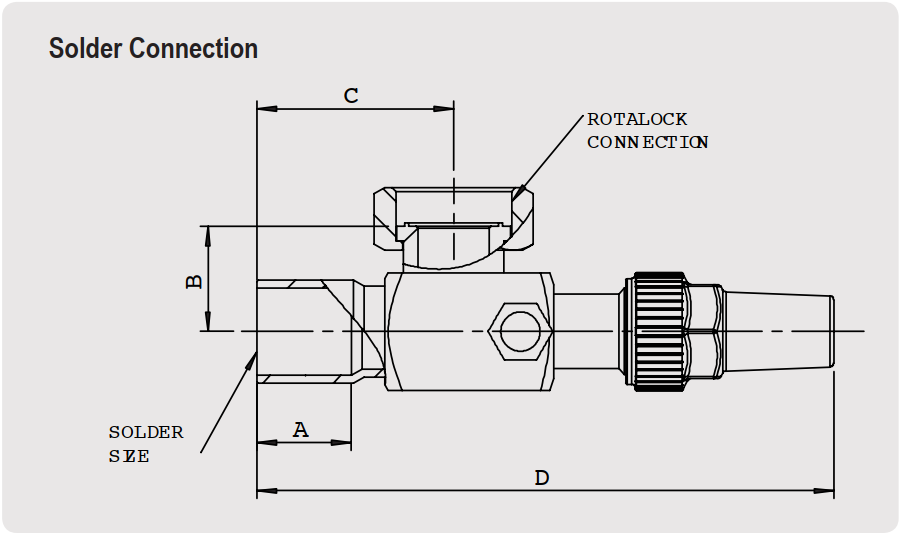

Part No.	Solder Size	Rotalock Thread	Dimensions (mm)
Part No.	Solder Size	Rotalock Thread	A	B	C	D
2606-041220	1/4″	3/4”-16 UNF	8	19	29	103
2606-061220	3/8″	3/4”-16 UNF	8	19	25	105
2606-061620	3/8″	1”-14UN	8	19	25	100
2606-081220	1/2″	3/4”-16 UNF	10	19	39	104
2606-081620	1/2″	1”-14 UN	10	19	30	104
2606-101620	5/8″	1”-14 UN	15	19	29	104
2606-102030	5/8″	1 1/4”-12 UNF	15	26.7	40	132
2606-122030	3/4″	1 1/4”-12 UNF	15	26.7	40	132
2606-142030	7/8″	1 1/4”-12 UNF	20	26.7	40	132
2606-182030	1 1/8″	1 1/4”-12 UNF	20	26.7	47	139
2606-142830	7/8″	1 3/4”-12 UN	20	27.7	40	133
2606-182835	1 1/8″	1 3/4”-12 UN	20	30.7	55	176
2606-222835	1 3/8″	1 3/4”-12 UN	22	30.7	56	177
2606-262835	1 5/8″	1 3/4”-12 UN	25	30.7	61	182
2606-263650	1 5/8″	2 1/4”-12 UN	25	41.5	74.5	214
2606-343650	2 1/8″	2 1/4”-12 UN	25	41.5	78.5	219
