Rotalock Valves Welding Spuds – Available as ASME – Female ID Weld to Male Rotalock Thread
| Description | Suit 3/4 Rotalock, Suit 1 Rotalock, Suit 1 1/4 Rotalock, Suit 1 3/4 Rotalock, Suit 2 1/4 Rotalock |
|---|
Brand
Henry Technology

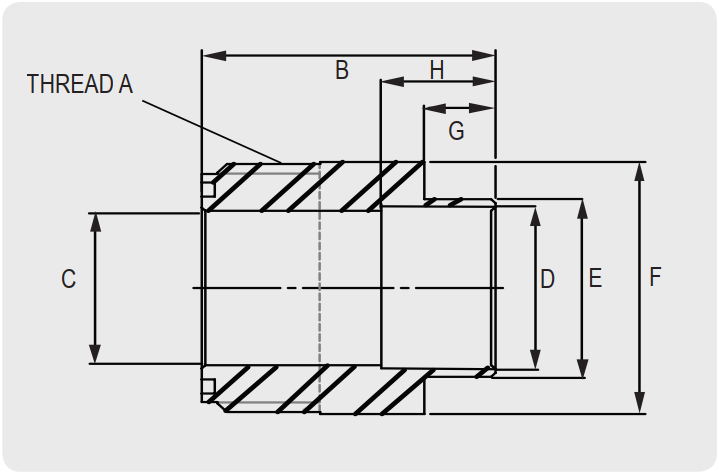

Specifications
|
Part No. |
Description |
Thread (Inch) A |
Dimensions (mm) |
Nominal Weight (kg) |
||||||
| Overall Length
B |
I.D. C |
I.D. D |
O.D. E |
Welded End O.D.
F |
Length G |
Depth H |
||||
| 965-26XX-12S | Suit 3/4 Rotalock | 3/4-16 UNF | 34 | 7.9 | 7.9 | 11.1 | 19.1 | 6 | – | 0.04 |
| 965-26XX-16S | Suit 1 Rotalock | 1-14 UN | 36 | 12.7 | 12.7 | 15.9 | 25.4 | 6 | – | 0.09 |
| 965-26XX-20S | Suit 1 1/4 Rotalock | 1-1/4-12 UNF | 38 | 19.0 | 19.0 | 22.2 | 31.8 | 8 | – | 0.09 |
| 965-26XX-28S | Suit 1 3/4 Rotalock | 1-3/4-12 UN | 38 | 31.75 | 34.9 | 38.1 | 44.5 | 8 | 15 | 0.18 |
| 965-26XX-36S | Suit 2 1/4 Rotalock | 2-1/4-12 UN | 39 | 41.3 | 41.3 | 47.6 | 57.2 | 8 | – | 0.27 |
