Standard Suction Line Accumulators

Name: Standard Suction Line Accumulators
SKU: 9975
Availability: InStock

Connection Size & Volume

Clear

SKU: N/A Category: Suction Accumulators

Connection Size & Volume	SSLA-1/2" .7L, SSLA-1/2" 1.5L, SSLA-5/8" 1.6L, SSLA-5/8" 1.9L, SSLA-3/4" 1.6L, SSLA-3/4" 2.4L, SSLA-3/4" 2.6L, SSLA-7/8" 3.4L, SSLA-7/8" 4.0L, SSLA-1 1/8" 4.0L, SSLA-1 1/8" 5.5L, SSLA-1 1/8" 5.9L, SSLA-1 1/8" 6.3L, SSLA-1 1/8" 7.2L, SSLA-1 3/8" 6.3L, SSLA-1 3/8" 7.1L, SSLA-1 3/8" 9.6L, SSLA-1 5/8" 10.5L, SSLA-2 1/8" 13.0L, SSLA-2 1/8" 15.0L, SSLA-2 1/8" 26.0L

Brand

Nominal Capacity kW @ +5OC set & 30OC sct, pressure drop = 7 kPa

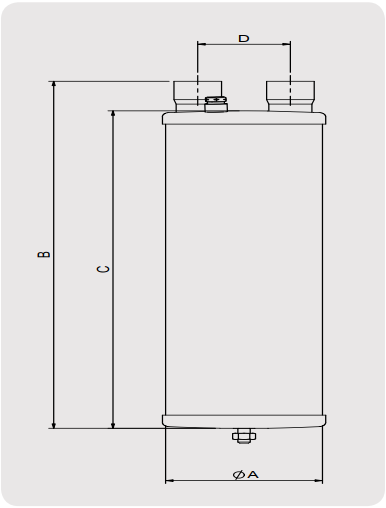

Part No.	Connection Size ID (Inch)	Volume (L)	R404A	R134a	R410A	Dimensions (mm)				Weight (kg)
Part No.	Connection Size ID (Inch)	Volume (L)	R404A	R134a	R410A	Dia. A	B	C	D	Weight (kg)
3100-083007	1/2	0.7	3.1	1.6	3.1	76	200	172	41.2	1.10
3100-084015	1/2	1.5	3.1	1.6	3.1	102	250	214	52	1.5
3100-104016P	5/8	1.6	7.4	6.2	7.4	102	218	194	43.5	1.90
3100-104019	5/8	1.9	7.4	6.2	7.4	102	305	270	52	2.60
3100-124016P	3/4	1.6	13.4	11.2	13.4	102	244	220	43.5	2.20
3100-125024P	3/4	2.4	13.4	11.2	13.4	127	215	186	43.5	2.80
3100-125029P	3/4	2.6	13.4	11.2	13.4	127	255	222	43.5	3.20
3100-145034P	7/8	3.4	19.0	15.8	19.0	127	285	245	43.5	3.50
3100-145040	7/8	4.0	19.0	15.8	19.0	127	368	328	70	3.80
3100-185040	1 1/8	4.0	31.4	16.3	31.4	127	360	315	70	3.80
3100-185559	1 1/8	5.9	31.4	16.3	31.4	140	430	385	75	6.20
3100-186055P	1 1/8	5.5	31.4	16.3	31.4	159	390	340	60.5	5.90
3100-186063P	1 1/8	6.3	31.4	16.3	31.4	159	470	420	60.5	6.80
3100-186572	1 1/8	7.2	31.4	16.3	31.4	180	442	397	85	7.0
3100-226071P	1 3/8	7.1	95	49.3	95	160	460	406	60.5	7.40
3100-226563	1 3/8	6.3	95	49.3	95	160	350	305	85	6.20
3100-226596	1 3/8	9.6	95	49.3	95	159	569	524	85	8.1
3100-266510	1 5/8	10.5	201	109	201	160	575	525	85	9.30
3100-346013P	2 1/8	13.0	201	109	201	160	874	820	70.5	14.00
3100-348615	2 1/8	15.0	201	109	201	219	533	499	123	13.30
3100-348626	2 1/8	26.0	201	109	201	219	879	836	89	23
