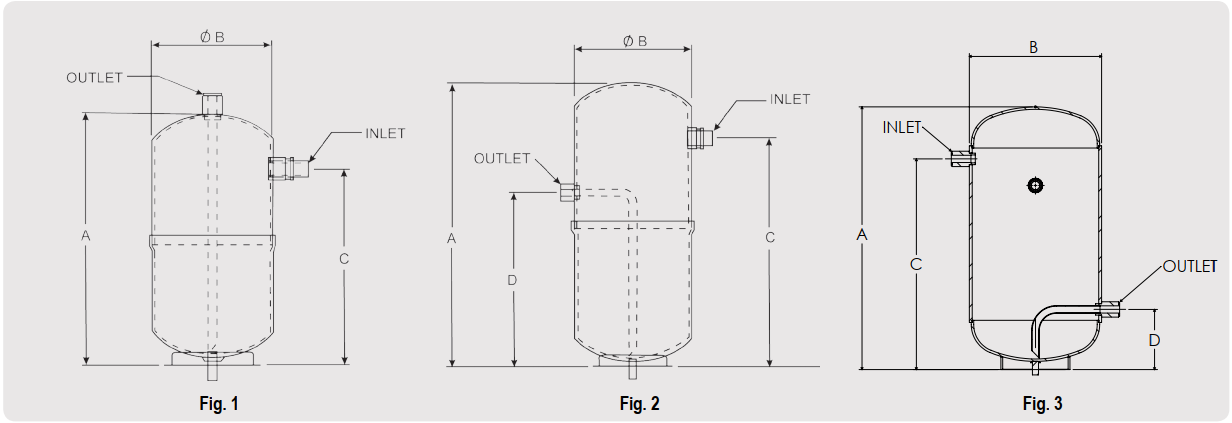

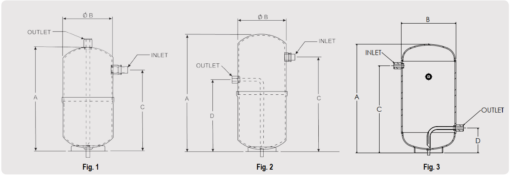

Standard Vertical Liquid Receivers

Liquid Receivers collect the condensed liquid refrigerant exiting the condenser. Their internal volume allows them to store this refrigerant during fluctuating load conditions. Sized correctly they can store the entire refrigerant charge of a system during pump down. A pickup tube at the vessels outlet guarantees that a liquid seal is established ensuring only liquid refrigerantenters the liquid line.

Henry Tech manufacture a wide range of Liquid Receivers in both Vertical and Horizontal configurations. A Standard range of Vertical Receivers are available from 1.4 litres through to 14.5 litres. Larger Vertical or Horizontal configurations up to 250 litres in volume can be manufactured to suit individual customer needs, all with short lead times.

Built to either AS 1210 or AS 2971standards, Henry Tech Tullamarine’s manufacturing plant has the capability to produce pressure vessels with shell diameters ranging from 100mm through to 508mm. Suitable for use with all current refrigerants, vessels can be specifically made to suit R410A, CO2 or Ammonia applications.

Made to order receivers can be fitted with a range of service valves, sight glass combinations, liquid level sensors and pressure relief valve access ports. Customised bracketery to suit customer specifications is also available.
