Straight-through Relief Valve – Stainless Steel

Conn Size & Inlet and Outlet

Clear

SKU: N/A Category: Pressure Relief Valves

Conn Size & Inlet and Outlet	SSRV – 1/2 NPTF 3/4 NPTF (Female), SSRV – 3/4 NPTF 3/4 NPTF (Female), SSRV – 3/4 NPTF 1 NPTF (Female), SSRV – 1 NPTF 1 NPTF (Female), SSRV – 1 NPTF 1 1/4 NPTF (Female), SSRV – 1 1/4 NPTF 1 1/4 NPTF (Female)

Brand

Henry Technology

Specifications

Straight-through Relief Valves – Stainless Steel

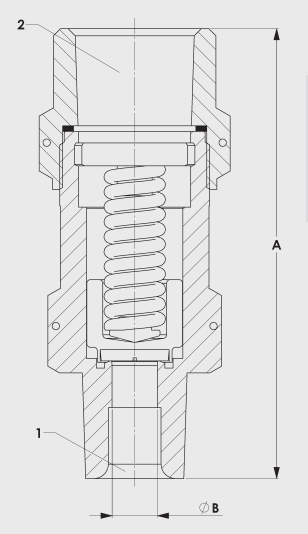

Part No	Conn Size (inch)		Dimensions (mm)		Flow Area (mm2)	Kdr	Weight (kg)	CE Cat
Part No	Inlet	Outlet	A	ØB	Flow Area (mm2)	Kdr	Weight (kg)	CE Cat
5340-xx.x BAR-CE	1/2 NPTF	3/4 NPTF (female)	94	9.5	71.26	0.67	0.39	Cat IV
5342-xx.x BAR-CE	3/4 NPTF	3/4 NPTF (female)	94	9.5	71.26	0.67	0.43	Cat IV
5344A-xx.x BAR-CE	3/4 NPTF	1 NPTF (female)	106	12.7	126.68	0.68	0.56	Cat IV
5344-xx.x BAR-CE	1 NPTF	1 NPTF (female)	106	12.7	126.68	0.68	0.62	Cat IV
5345-xx.x BAR-CE	1 NPTF	1 1/4 NPTF (female)	149	17.9	250.41	0.60	1.25	Cat IV
5346-xx.x BAR-CE	1 1/4 NPTF	1 1/4 NPTF (female)	145	17.9	250.41	0.60	1.37	Cat IV
